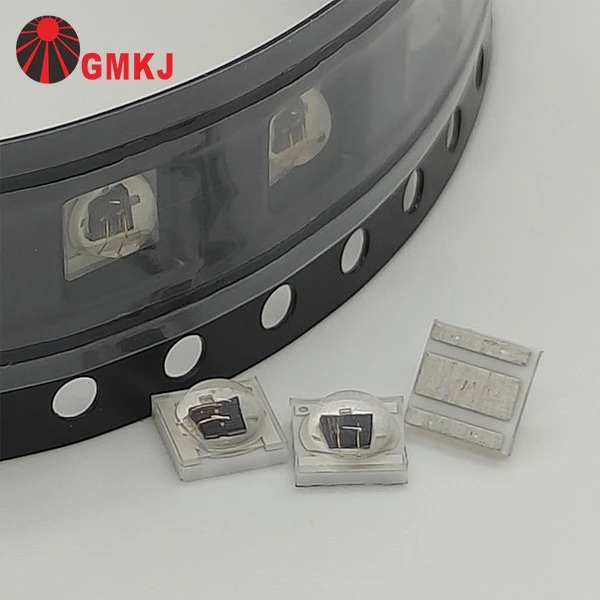

IR 810nm 3535 SMD LED diodining xususiyatlari
| Mahsulot nomi | IQ 810nm 3535 SMD LED diodi |
| Qism raqami | GT-3535R805-1CC0-G1D2M |
| Chips brendi | Tayvan epiledi |
| Labelda ishlab chiqaruvchi brendi |
GMKJ brendi Xitoyning Shenzhen shahrida joylashgan Guangmai Technology Co., Ltd tomonidan ishlab chiqarilgan |
| Kirish |
IFmax 700mA bilan 1,4-1,8vdc |
| Yorug'lik / nurlanish oqimi | 700 mA da 400-600 mVt |
| Yoritish samaradorligi | Ko'rinmas infraqizil LEDlar, LM/W mavjud emas |
| To'lqin uzunligi/rang |
Eng yuqori to'lqin uzunligi 805-810 nm
Bu erda infraqizil to'lqin uzunligidagi boshqa to'lqin uzunligi mavjud: 730-740 nm; 805-810 nm; 830-835 nm; 845-855 nm; 900-910 nm; 940-950 nm;
SWIR to'lqin uzunligi mavjud: 1040-1050 nm; 1060-1080 nm; 1200-1250 nm; 1300-1350 nm; 1400-1450 nm; 1500-1550 nm; 1570-1580 nm; 1600-1650 nm; |
| Quvvat |
1-3 Vt |
| Paket materiali |
AL2O3 keramika, 3,5x3,5 mm o'lchamdagi smd led |
| Yoritish burchagi |
120 daraja yoritish burchagi, gumbazli silikon linzalar (Oddiy zaxira, kichik miqdor yaxshi) 90 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) 60 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) 30 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) |
| Narxi | Narx uchun GMKJ bilan bog'laning |
| Minimal buyurtma miqdori |
Qimmatli qog'ozlar mavjudligiga bog'liq: Agar biz zaxiralarni jo'natishga tayyor bo'lsak, bu erda namunalar sinovi uchun mo'ljallangan 100 dona ham qabul qilinadi. Agar zaxira yo'q bo'lsa, bizga 1 rulonli paket bilan kamida 1000 dona buyurtma miqdori kerak bo'ladi. |
| Kafolat | 4 yil |
| OEM xizmati |
1. SKD qismlari mavjud; 2. Sizga kerak bo'lgan o'lchamdagi moslashtirilgan LED qatori bu erda OK. |
| Qism raqami | Quvvat | To'lqin uzunligi | Chips brendi | Kirish xususiyatlari | ||
| GT-3535R700-G1D2 | 1-3W | 700-710 nm | Tayvan epiledi 42 mln | 2V 700mA | ||
| GT-3535R730-G1B7 | 1W | 730-740 nm | Tayvan epiledi 27 mln | 2V 350mA | ||
| GT-3535R730-S2D5 | 1-3W | 730-740 nm | Tavsiya etilgan! Shilan 45mil, yuqori optik quvvat / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 2V 700mA | ||
| GT-3535R730-G1D2 | 1-3W | 730-740 nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 2V 700mA | ||
| GT-3535R750-G1D2 | 1-3W | 750-760 nm | Tayvan epiledi 42 mln | 2V 700mA | ||
| GT-3535R760-G1D2 | 1-3W | 760-765 nm | Tayvan epiledi 42 mln | 2V 700mA | ||
| GT-3535R780-G1D2 | 1-3W | 780-790 nm | Tayvan epiledi 42 mln | 2V 700mA | ||
| GT-3535R800-G1D2 | 2-3W | 800-810nm, 400-600mVt | Tayvan epiledi 42 mln | 1,5V maksimal 1000mA | ||
| GT-3535R800-1CS0-G1D2 | 4-6W | 800-810nm, 800-900mVt | Epiledlar 42mil, Nano Stack yuqori mVt / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 3V maksimal 1000mA | ||
| GT-3535R830-G1D2 | 2-3W | 830-840nm, 400-600mVt | Tayvan epiledi 42 mln | 1,5V maksimal 1000mA | ||
| GT-3535R850-S2B6 | 1.5W | 845-855nm (tavsiya etiladi) | Xitoy Shilan 26mil, yuqori mVt / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 500mA | ||
| GT-3535R850-S2C6 | 2W | 845-855nm (tavsiya etiladi) | Xitoy Shilan 36mil, yuqori mVt / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 700mA | ||
| GT-3535R850-S2D2 | 3W | 845-855nm (tavsiya etiladi) | Xitoy Shilan 42mil, yuqori mVt / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 1000mA | ||
| GD-3535R850-S2D2 | 3-4W | 845-855nm (tavsiya etiladi) | Xitoy Shilan 42mil, yuqori mVt / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 1500mA | ||
| GT-3535R850-G1D2 | 2-3W | 845-855 nm, 400-600 mVt | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 1000mA | ||
| GT-3535R850-1CS0-G1D2 | 3-5W | 845-855 nm, 800-900 mVt | Tayvan epileds 42mil, Nano Stack / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 3V maksimal 1000mA | ||
| GD-3535R850-1CS0-S1D2 | 4-6W | 850-855nm, 1500-1800mVt | Xitoy Sanan 42mil, Nano Stack / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 3V maksimal 1500mA | ||
| GT-3535R880-G1D2 | 2-3W | 880-885 nm, 400-600 mVt | Tayvan epiledi 42 mln | 1,5V maksimal 1000mA | ||
| GT-3535R900-G1D2 | 2-3W | 900-910nm, 400-600mVt | Tayvan epiledi 42 mln | 1,5V maksimal 1000mA | ||
| GT-3535R940-G1B8 | 1W | 940-950 nm | Tayvan epiledi 28 mln | 1,5V 350mA | ||
| GT-3535R940-G1D2 | 2-3W | 940-950nm, 400-600mVt | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 1000mA | ||
| GT-3535R940-S1D2 | 2-4W | 940-950nm (tavsiya etilgan) 500-700mVt | Xitoy Sanan 42mil / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,5V maksimal 1500mA | ||
| GT-3535R940-1CS0-G1D2 | 3-5W | 940-950nm, 800-900mVt | Tayvan epileds 42mil, Nano Stack / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 3V maksimal 1000mA | ||
| GD-3535R940-1CS0-S1D2 | 4-6W | 940-950nm, 1500-1800mVt | Xitoy Sanan 42mil, Nano Stack / 30 daraja, 60 daraja, 90 daraja, 120 daraja | 3V maksimal 1500mA | ||
| GT-3535R940-G1B8 | 1W | 940-950 nm | Tayvan epiledi 28 mln | 1,5V 350mA | ||
| GT-3535R980-G1D2 | 1-3W | 980-985 nm | Tayvan epiledi 42 mln | 1,5V 700mA | ||
| GT-3535R1040-G1D2 | 1-3W | SWIR 1040-1050nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,0-1,4V 700mA | ||
| GT-3535R1060-S1D2 | 1-3W | SWIR 1060-1070nm | Xitoy Sanan 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,0-1,4V 700mA | ||
| GT-3535R1060-G1D2 | 1-3W | SWIR 1060-1080nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 1,0-1,4V 700mA | ||
| GT-3535R1200-G1D2 | 1-3W | SWIR 1200-1250nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,8-1,4V 700mA | ||
| GT-3535R1300-G1D2 | 1-3W | SWIR 1300-1350nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,8-1,4V 700mA | ||
| GT-3535R1400-G1D2 | 1-3W | SWIR 1400-1450nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,6-1,2V 700mA | ||
| GT-3535R1500-G1D2 | 1-3W | SWIR 1500-1550nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,6-1,2V 700mA | ||
| GT-3535R1575-G1D2 | 1-3W | SWIR 1575-1580nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,6-1,2V 700mA | ||
| GT-3535R1630-G1D2 | 1-3W | SWIR 1630-1650nm | Tayvan epiledi 42mil/30 daraja, 60 daraja, 90 daraja, 120 daraja | 0,6-1,2V 700mA | ||
IR 810nm 3535 SMD LED diod prasm
 |
 |
|
120 daraja yoritish burchagi, gumbaz silikon linzalari 120 daraja |
90 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) 60 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) 30 daraja yoritish burchagi, gumbazli silikon linzalar (MOQ 2000 dona) |
GMKJ tomonidan yig'ilgan alyuminiy LED PCBA (mijozlarimiz tomonidan taqdim etilgan PCB chizmasi va BOM)
GMKJ o'zimizning SMT LED pcb platalarini yig'ish liniyasiga- ega, jumladan avtomatik yig'ish va joylashtirish mashinasi, avtomatik lehim pastasini qo'llash mashinasi, yuqori haroratli qayta ishlaydigan pech.
Mijozlarimiz bizga PCB platalari chizmalarini va PCB platalari BOM ro'yxatini taqdim eta olsalar, biz LED pcb platasini yig'ishimiz mumkin.
IR 810nm 3535 SMD LED diodining o'lchami
IQ 810nm 3535 SMD LED diodiElektr xususiyatlari
|
Parametr |
Belgi |
Shartlar |
Min |
Oʻrtacha |
Maks |
Birliklar |
|
Oldinga kuchlanish |
VF |
IF=700mA |
1.40 |
-- |
1.80 |
V |
|
Termal qarshilik birikmasi Kengashga |
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
darajaC/W |
|
YorqinOqim |
Φe |
IF=700mA |
400 |
-- |
600 |
mW |
|
Tepalikto'lqin uzunligi |
λp |
IF=700mA |
805 |
-- |
810 |
nm |
|
Teskari oqim |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Ko'rish burchagi [1] |
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Deg |
Nima uchun 810nm LEDlar qizil terapiya nuri uchun keng qo'llaniladi? 850 nm to'lqin uzunligi bilan solishtirganda uning afzalligi nimada?
810nm odatda qizil/NIR terapiyasida qo'llaniladi, chunki u mitoxondrial fermentlarning (masalan, sitoxrom c oksidaza) so'rilish cho'qqilaridan biriga yaqin. Oddiy qilib aytganda, tana bu to'lqin uzunligidan biroz samaraliroq "foydalanishi" mumkin, shuning uchun fotobiomodulyatsiya effekti odatda kuchliroq hisoblanadi.
850nm bilan solishtirganda:
Samaradorlik:
810nm odatda "biologik faolroq" sifatida ko'riladi, shuning uchun u ko'pincha professional yoki tibbiy{1}}turdagi ilovalarda qo'llaniladi.
Kirish:
850 nm to'qimalarga biroz chuqurroq kirib borishi mumkin, 810 nm esa hali ham chuqur, lekin yo'lda bir oz ko'proq so'riladi.
Samaradorlik:
850nm LEDlar odatda samaraliroq va yuqori chiqishni olish osonroqdir, shuning uchun ular tijorat mahsulotlarida juda keng tarqalgan.
Ko'rinish:
850 nm zaif qizil nurga ega, 810 nm esa deyarli ko'rinmas.
Shunday qilib, amalda:
810nm ko'pincha terapiya samaradorligiga ko'proq e'tibor qaratilayotganda tanlanadi
850nm samaradorlik, xarajat va chiqish quvvati muhimroq bo'lganda keng qo'llaniladi
Ikkalasi ham keng qo'llaniladi, faqat bir oz boshqacha ustuvorliklar bilan
Tegishli SMD LEDlar uchun ma'lumotlar jadvalini ushbu sahifadan yuklab olishingiz mumkin.
Agar sizga narx, minimal buyurtma miqdori, stok holati va yetkazib berish muddati kabi qo'shimcha ma'lumotlar kerak bo'lsa, to'g'ridan-to'g'ri GMKJ LEDlari bilan bog'laning!
